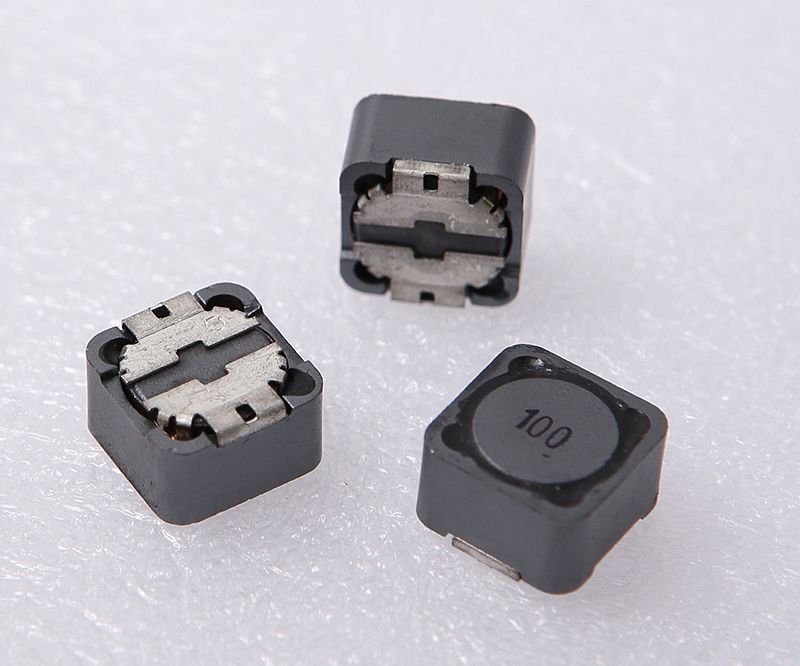

■Features/特征   Various high power inductors are superior to be high    saturation for surface mounting. ■Applications/用處   Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, partable communication equipments, DC/DC converters, etc

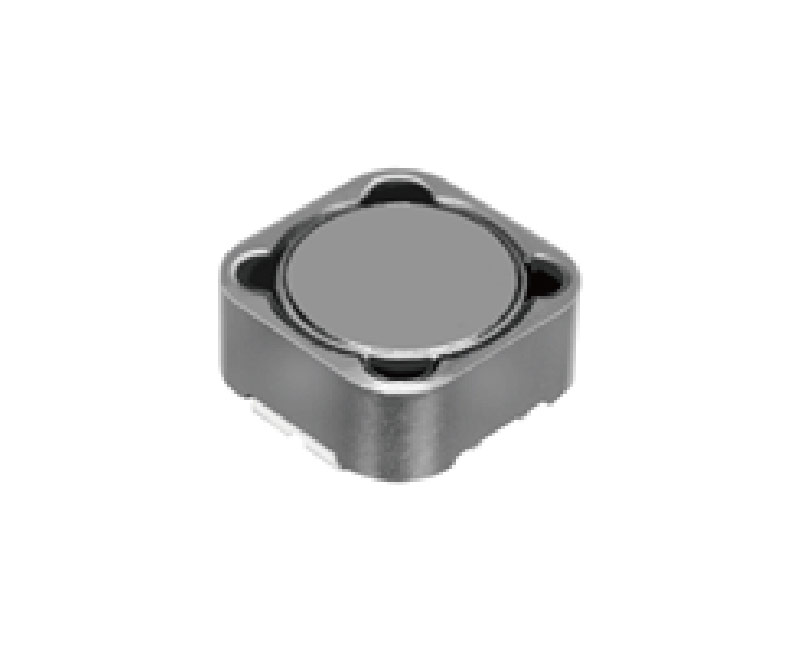

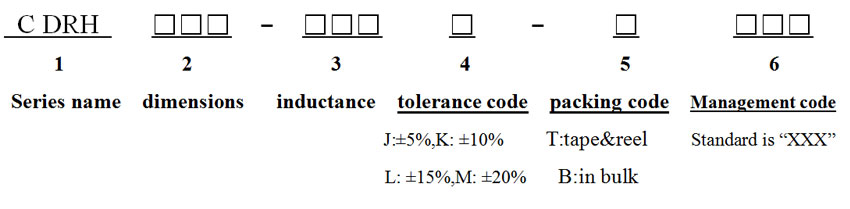

■Part numbering system/型號標示法

■Shapes and dimensions/形狀及尺寸 (UNIT:mm)

Type	Amax	Bmax	C	D	E	F	G	I
CDRH124	12.30	4.50	5.0	12.0	7.60	2.80	5.40	7.0
CDRH125	12.30	6.00	5.0	12.0	7.60	2.80	5.40	7.0
CDRH127	12.30	8.00	5.0	12.0	7.60	2.80	5.40	7.0
CDRH129	12.30	10.0	5.0	12.0	7.60	2.80	5.40	7.0

※CDRH129僅為試產款型

Specification table:

■SERIES:CDRH124,CD125,CD127

※木制托盤工作瞬時電壓電流指標值可即使知足交流電累積同意證書工作瞬時電壓電流和濕度回暖同意證書值的交流電工作瞬時電壓電流值※Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH時)  Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH時)※不完善列成這一切型號,不列于表內的電感量型號可連洽大家全屋定制

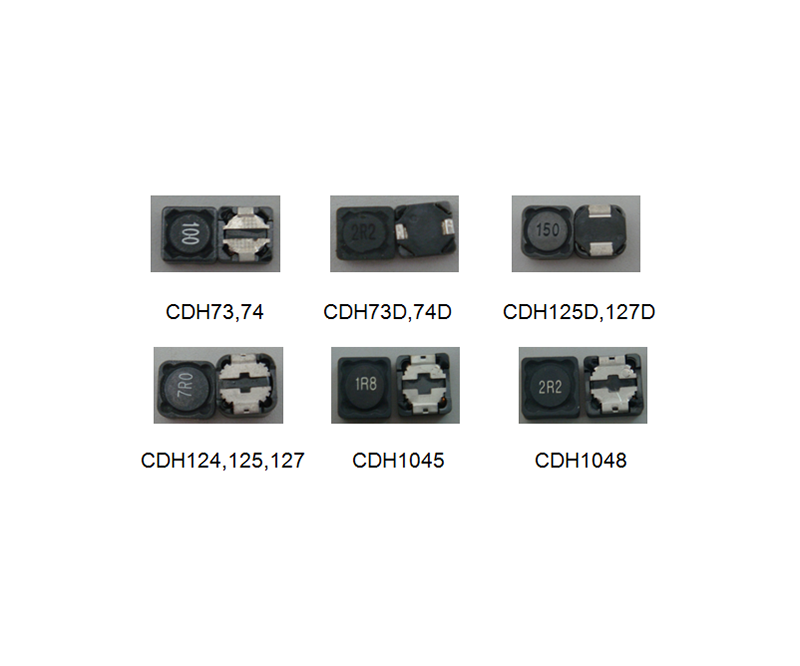

■Real Packing of  SMT Inductor

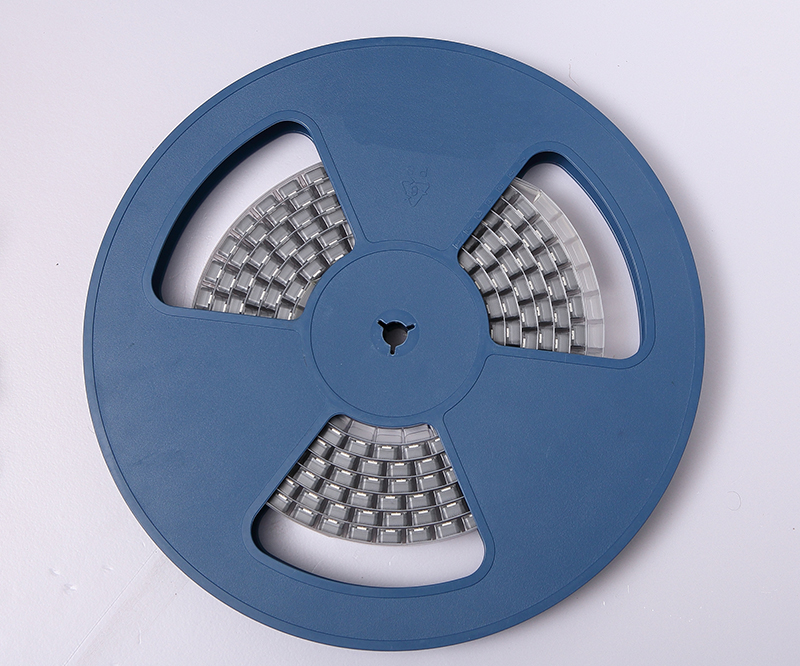

Tape and Reel Dimensions:(unit:mm)

Surface Mounting Type, Reel/Tape List:

PACKING TYPE	Reel Size(mm)				Tape Size(mm)									Q’ty, Pcs/reel
	A	B	G	N	E	F	D0	P	P0	P2	W	T	K0
LSMT-01	178	11	8.5	60	1.75	3.5	1.5	4	4	2	8	0.25	2.1	2000
02	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.30	1.7	1000
03	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.30	2.1	1000
04	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	3.0	2000
05	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	2.4	2000
06	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.35	5.5	2000
07	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.30	3.5	1500
08	330	21	16.5	100	1.75	11.5	1.5	12	4	2	24	0.40	5.9	1000
09	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.30	4.0	1000
10	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	4.2	1000
11	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	4.8	500
12	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	5.2	500
13	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	6.0	500
14	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	8.2	500

**進行木箱形勢不全數前往參加，基本供應商時以“合適”準繩挑進行木箱物，是以什物進行木箱有是可以可能不按所述列表頁**
